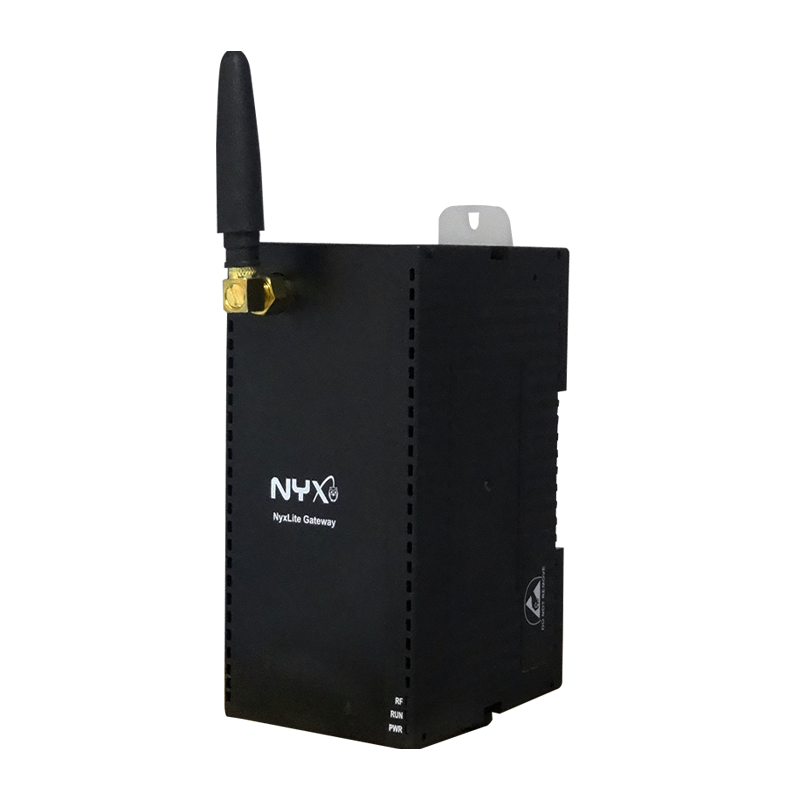

Ethernet Gateway
- Main home controller unit, connected to existing wifi router through ethernet cable.
- Built-in battery back-up ( optional for lighting), supports 3 hrs. power back up
- Wireless communication with all connected home control devices fixed at various locations inside home
- UI devices like mobile phones are authenticated with Gateway through password
- Supports 32 lighting controllers ( 4 switch modules) and 32 various wireless sensors
- Shipped with pre-defined configuration program loaded on it
- Provision to scale up features through various add-on devices
- Various beep indications to attract attention on person's entry as well exit for authentication
- Retains all set parameters when power resumes back after a power failure
- Mobile App allows to personalize the lighting/Fan controls
- Mobile App works offline as well as online using internet
- Provision to connect multiple users using Android mobile App
- Options for table top and wall mount
- Rugged and fail safe device to work 24x7 in all weather conditions
- Provision for hooter to sound alert in case of Emergency
- Works on 230v ac with built-in re-chargeable Li-ion battery ( optional for lighting), supports 3 hrs. power back up
- Consumes less than 2 watts of power
- Operating temperature: 0-40 degree centigrade
- Connectivity: Radio 866 Mhz, can communicate from anywhere within home, passes even through concrete walls
- Battery switch-over and low battery indication
- Dimensions:100X70X52 in mm

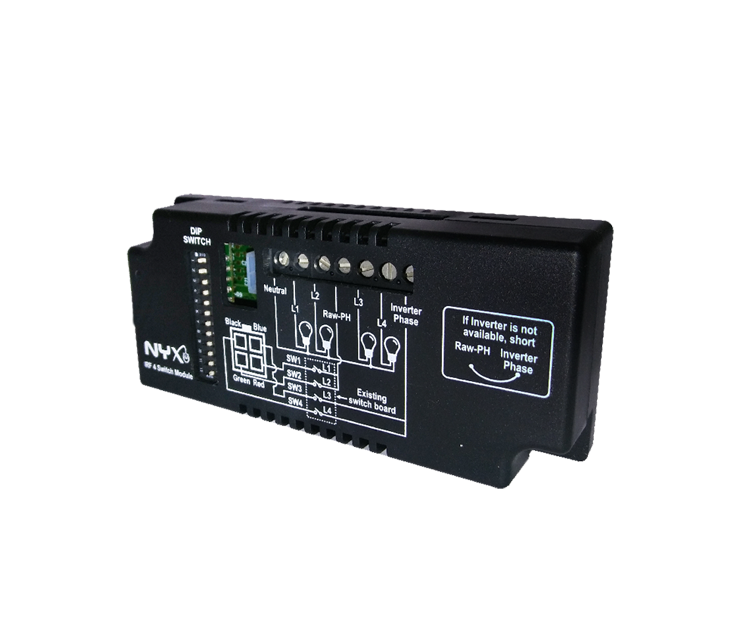

4-Switch Lighting Module
- 5Amp lights and fan on/off control device. Fits inside the existing switch board. Each module controls 4 loads. Works along with existing switches.
- Lights/fans can be switched on/off using conventional switches as well as using remote control, Mobile phone
- Supports Incandescent bulbs/tubes, LED bulbs/tubes, CFL bulbs, fans (on/off)
- When power resumes after failure, load status is determined by the switch position
- A seperate fan control module can be added to control the fan speed
- Heavy power loads like, AC, geyser can be controlled using add-on relay modules
- Supports various curtain motors
- Communicates with gateway using RF from its location inside home
- Rugged and fail safe devices that can withstand power surges and frequent power failures
- Works on 230v ac. Consumes less than 2 watts of power
- Supports 5 Amp lighting loads like, Incandescent bulbs, LED bulbs/tubes, CFL bulbs, choke based tube lights, fans etc
- Heavy loads like AC, Geyser are used with add-on 30Amp relay module
- Operating temperature: 0-50 degree centigrade
- Connectivity: Radio 866 Mhz, can communicate from anywhere within home passes even through concrete walls
- Dimensions: 109X48X27 in mm

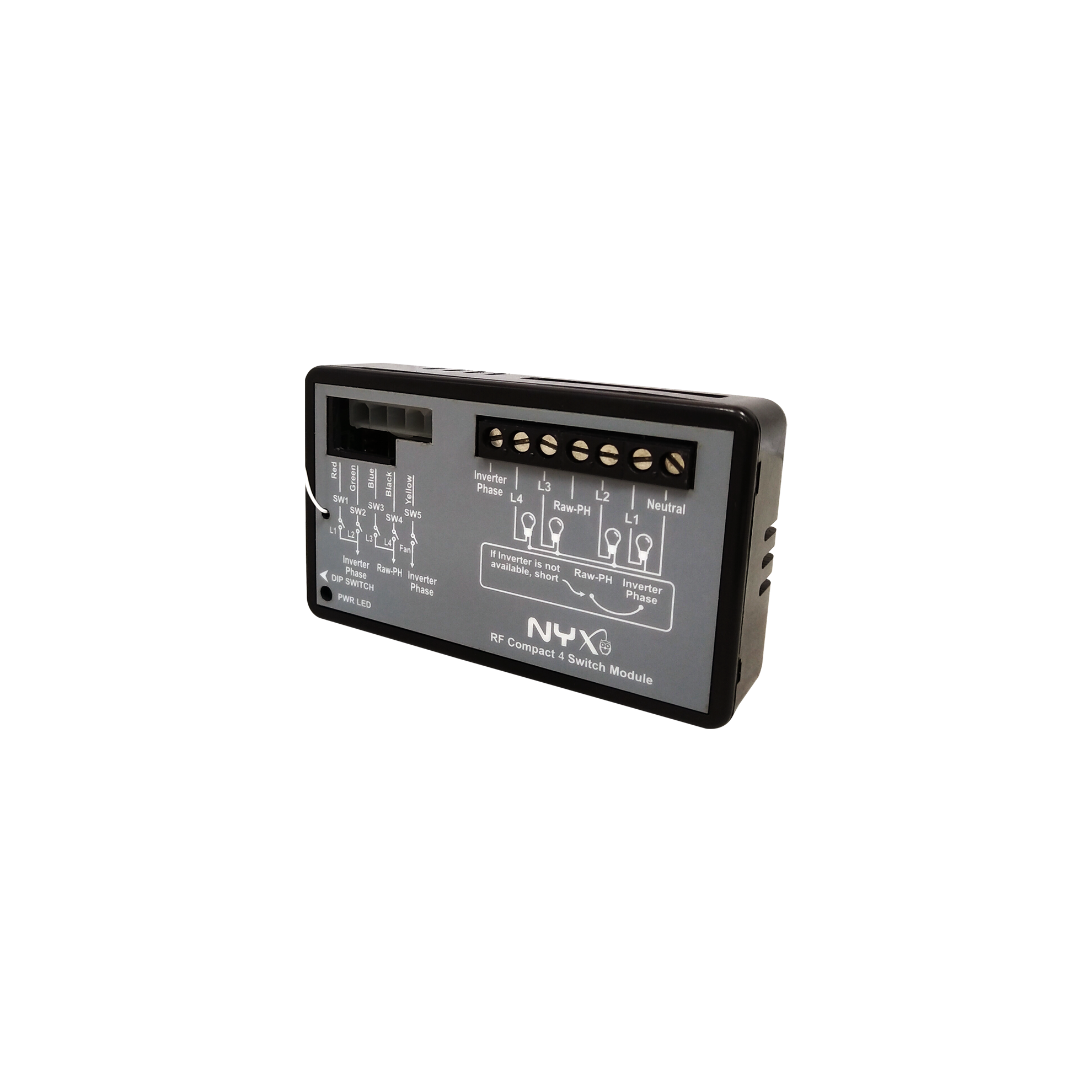

RF Compact Four Switch Module
- A 5Amp Compact light and fan on/off control device. Fits inside the existing conventional switchboard. Each module controls 4 lighting loads and a fan. Works along with existing switches. It can be fitted behind 4 module switchboard or above.
- Controls 4 lighting loads, Supports Fan, Tube light, CFL, LED home lighting loads
- A separate fan control module can be added to control the fan speed
- Compact in Size
- Communicates with the gateway using RF
- Lights/Fans can be switched on/off using conventional switches as well as using a remote control, Android Nyx App
- Supports a mix of raw power and inverter
- When power resumes after failure, load status is restored as per the previous state
- Easy to install, typically an electrician should manage
- Rugged and fail-safe devices that can withstand power surges and frequent power failures
- Operating voltage: 90-230VAC, 50Hz
- Load per channel: 150 watt inductive load, 250 watt resistive load
- Radio Frequency: 866Mhz
- Radio operating distance: 50m line of site
- Dimensions : 85mm X 50mm X 21mm

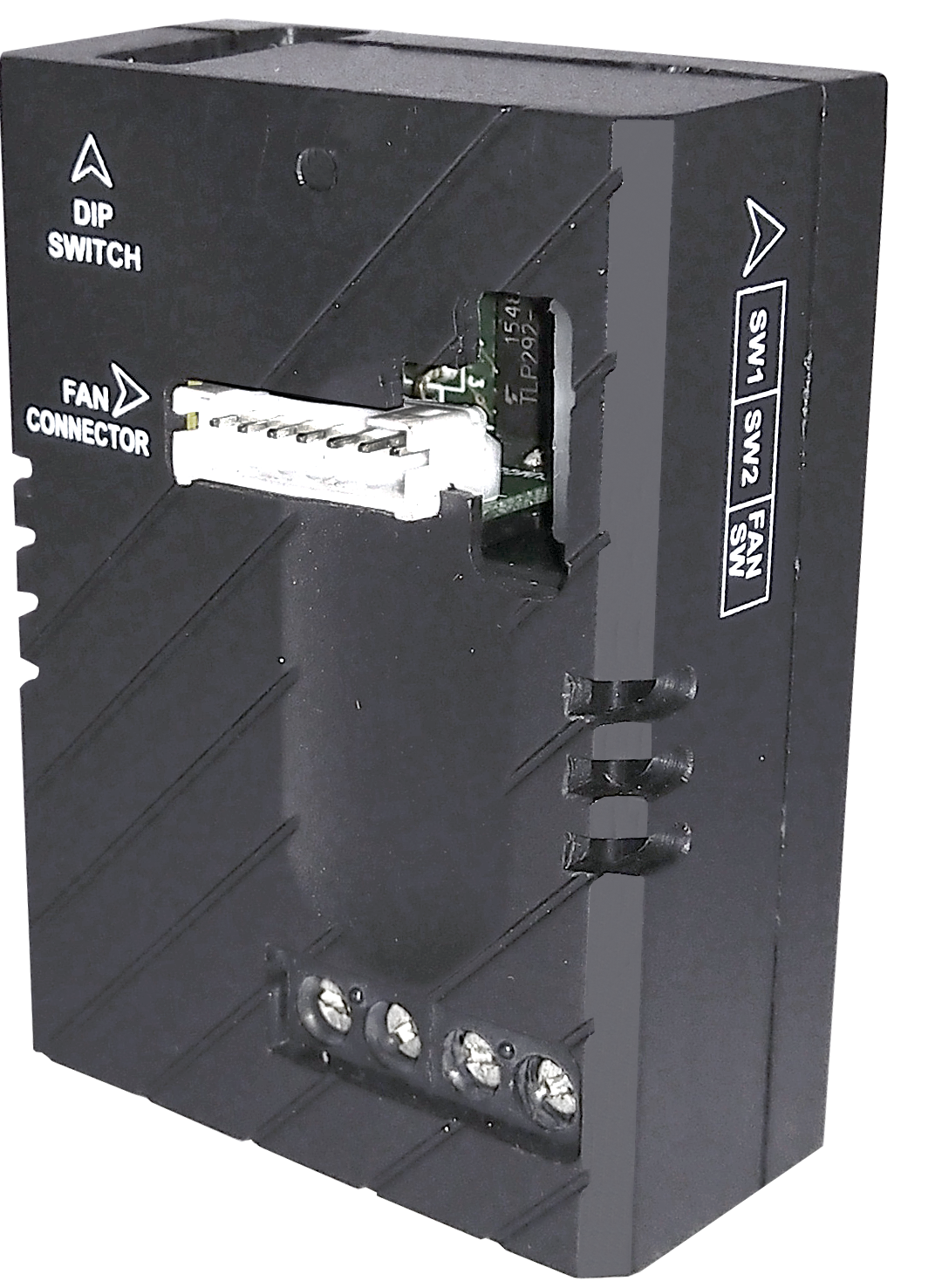

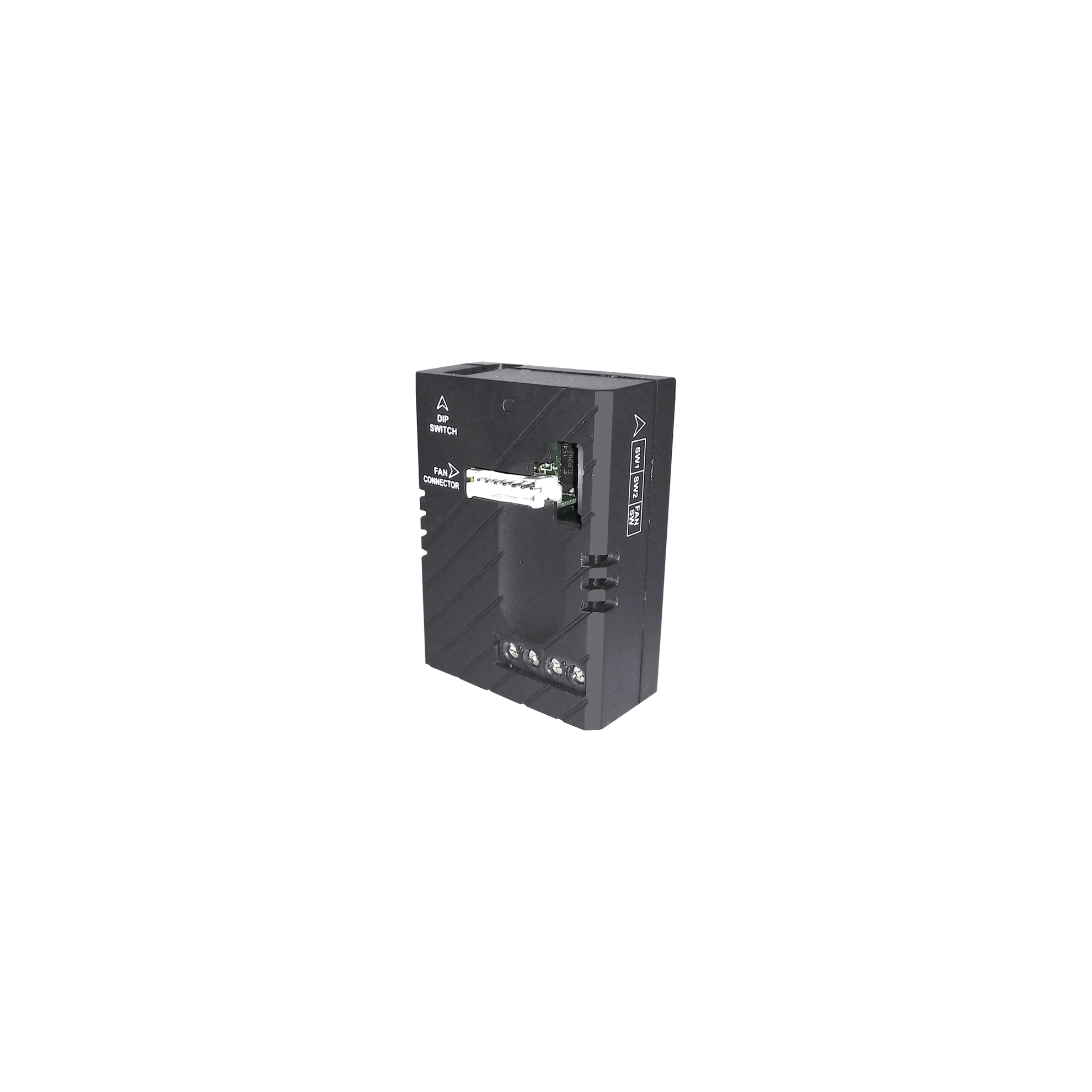

RF Two Switch Module
- A compact lighting control device. This device fits behind 2 module switchboard and above, provides controls for up to 2 loads. Works along with existing switches.
- Supports Fan, Tube light, CFL, LED home lighting loads
- Controls 2 lighting loads, a separate fan control module can be added to control the fan speed
- RF communication with the gateway
- Lights/fans can be switched on/off using conventional switches as well as using a remote control, Android Nyx App
- When power resumes after failure, load status is restored as per the previous state
- Easy to install. Typically, an electrician should manage
- Rugged and fail-safe devices that can withstand power surges and frequent power failures
- Operating voltage: 90-230VAC, 50Hz
- Load per channel: 150 Watt Inductive load, 250 Watt resistive load
- Radio Frequency: 866MHz
- Radio operating distance: 50m line of site
- Dimensions: 60 X 44 X 23mm

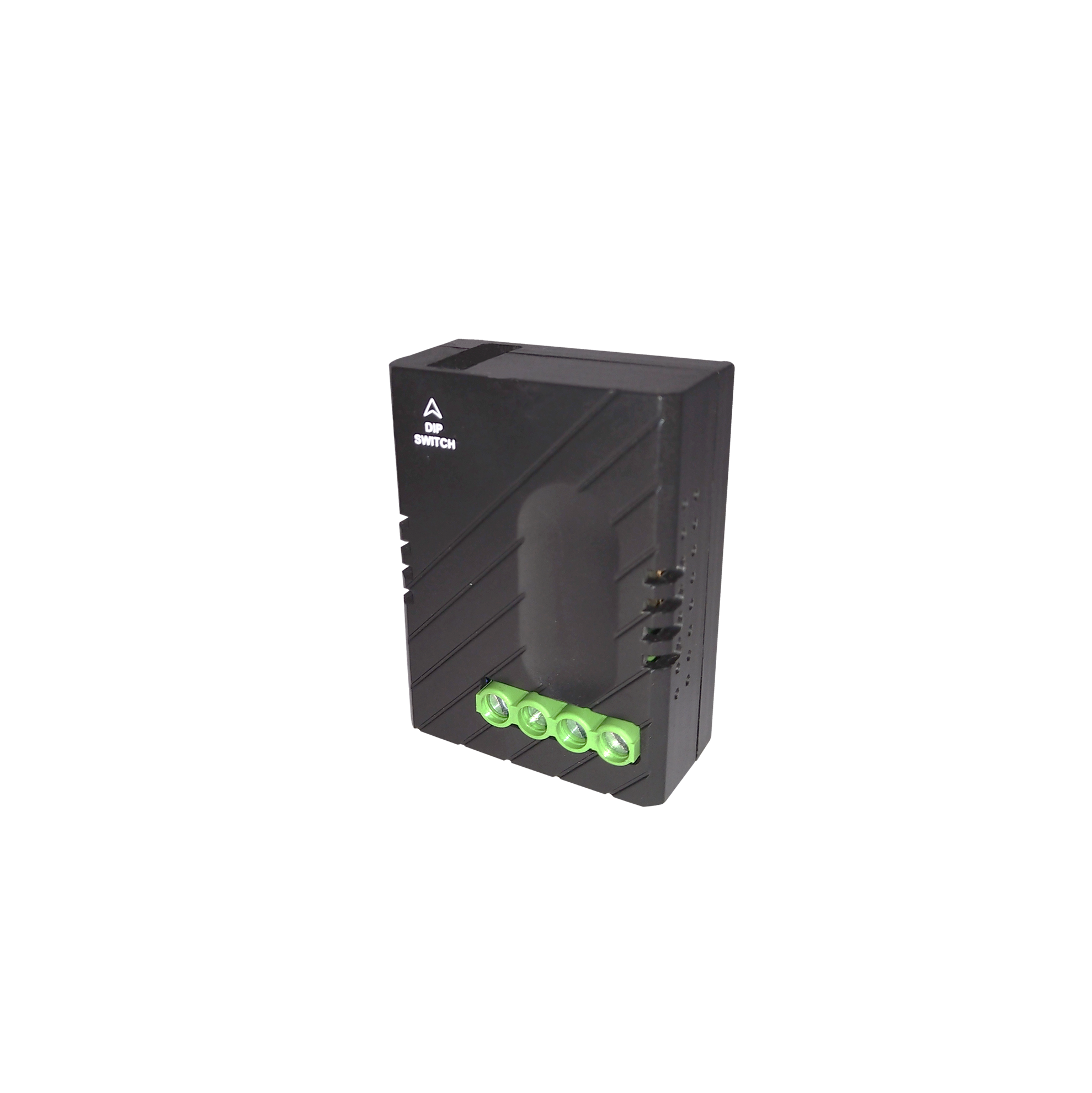

RF Single 15A Switch Module
- A device that controls high power appliances like AC or Boiler/Geyser. It can be placed behind or near conventional power switchboard and provide control for a single load.
- Controls single AC/Geyser load
- Works along with the existing switch
- RF communication with the gateway
- This can be operated using a switch, Nyx RF remote control, Android Nyx App
- Easy to install, typically an electrician should manage
- Rugged and fail-safe devices that can withstand power surges and frequent power failures
- Operating voltage: 90-230VAC, 50Hz
- Operating current: 15A
- Load capacity: 3KW
- Radio Frequency - 866Mhz
- Radio operating distance - 50m line of site
- Dimensions : 60 X 44 X 25 in mm

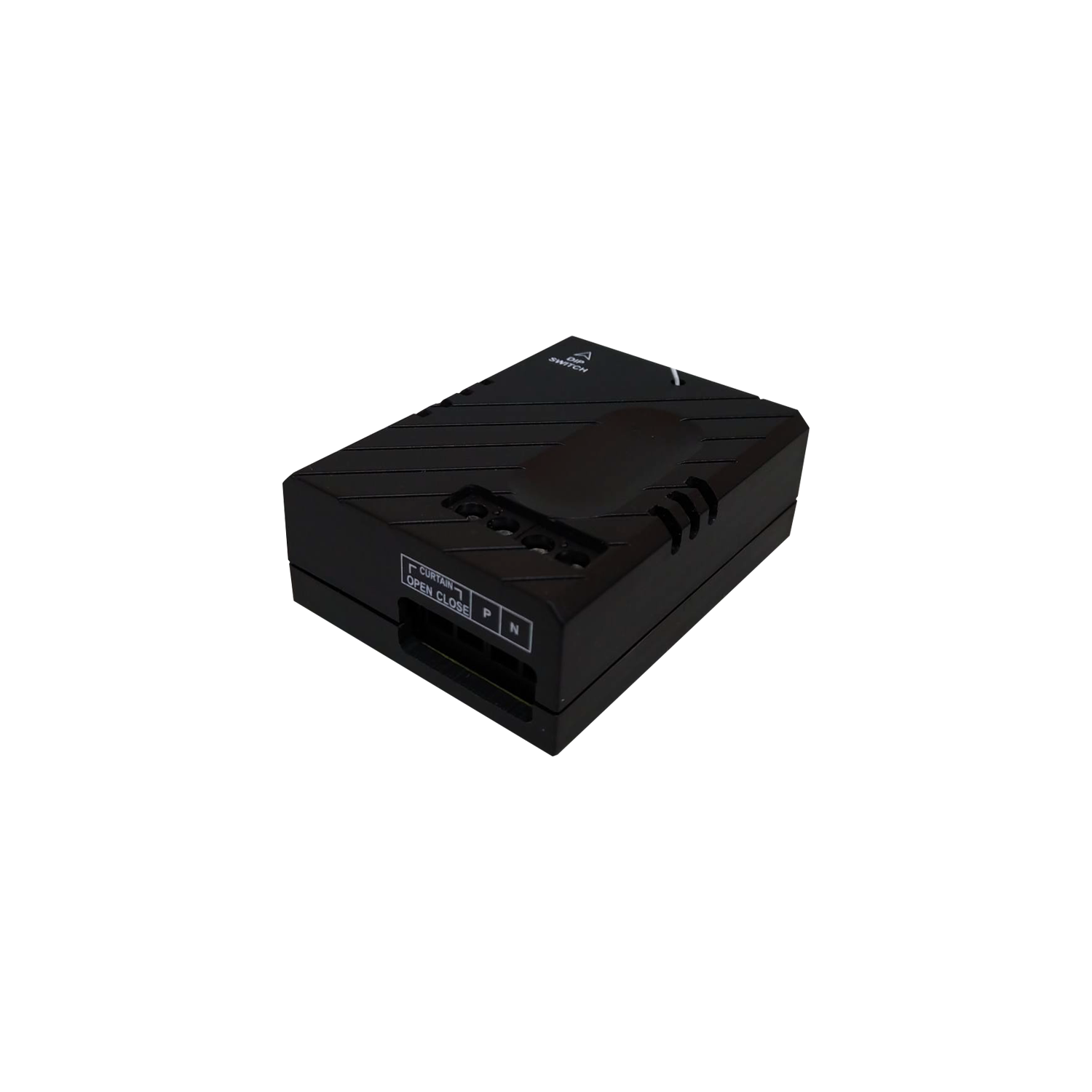

Single Curtain Controller
- This device controls the curtain motor. It is fixed near curtain motor. It allows to control curtain by various ways such as switch board, Android Nyx App
- Curtain controller operations: Open - Stop - Close
- Supports one curtain motor load
- RF communication with the gateway
- Curtain control using Nyx RF remote control, Android Nyx App
- Easy to install, typically an electrician should manage
- Rugged and fail-safe devices that can withstand power surges and frequent power failures
- Operating voltage: 90- 230VAC,50Hz
- Maximum Load per channel: 250 Watt
- Radio Frequency: 866Mhz
- Radio operating distance: 50m line of site
- Dimensions : 60 X 44 X 23 inmm
4-way Key Pad
- User operating device for light control with a set of scene keys, fixed at a convenient location
- Works on wireless technology
- Soft-touch backlit capacitive switches adds to elligence. Backlit turns-on after touching, convenient to operate in the dark
- Provision to select light loads for various scenes, using mobile Android App
- Gives low feedback sound while operating keys
- Indicates the current lighting scene, updates it in case of changes done through Android App
- Wall mount unit, can be fixed near bedside or at the entrance of a room
- Asthetic design that matches the decor of a room
- Provision to have multiple devices in a home.
- Works on 230v ac, consumes less than 1 watt
- Operating temperature: 0-40 degree centigrade
- Connectivity: Radio 866 Mhz (to communicate with Nyx systems)
- Domensions: 108X70X25 in mm
RF Remote Control
- Attractive, aesthetically designed remote control to operate lighting, fans, AC and Geyser for entire home
- Remote control with soft touch keys. Fluorescent colored keys help to operate remote even in the dark.
- Provides low feedback sound on every key press
- Attractive and intuitive user interface layout, provision to select and control room wise light/fan, fan speed, AC, Geyser and different scenes
- Room and Section selection buttons remember the last activity (radio buttons)
- Provision to use multiple remotes
- Consumes low power, operates on a re-chargeable Li-ion battery
- Provision to charge battery through a Micro-USB connector, using a regular mobile charger
- Uses wireless technology that passes through the concrete walls, operates from anywhere within home
- Works on built-in re-chargeable Li-ion battery
- Consumes low power
- Fully charged battery works for 24 hrs
- Operating temperature: 0-40 degree centigrade
- Connectivity: Radio 866 Mhz, can communicate from anywhere within home
- Low battery indication
- Dimensions: 190X50X23 in mm
RF Pin Pad
- Wall mount security control panel with 3 hours battery back-up
- Works on wireless technology
- Soft-touch backlit capacitive switches for elligant look.
- Mode setting switches and numeric keypad for passcode
- Backlit turns-on after touching with fingers, convenient to operate in the dark
- Gives low feedback sound while operating keys
- Indicates the current security mode, updates it in case of changes done through Android App
- Built-in, easy to use panic switch
- Generates alerts through beeps on intrusion and flashes LEDs
- 4 digit numeric passcode auhenticates entry and stops alarm
- Provision to have multiple devices at different locations in a home
- Sleek and aesthetic design to match the decor of living room
- Works on 230v ac with built-in re-chargeable Li-Ion battery, 3 hr. battery back-up
- Consumes less than 1 watts
- Operating temperature: 0-40 degree centigrade
- Connectivity: Radio 866 Mhz, can communicate from anywhere within home
- Battery switch-over and low battery indication
- Dimensions: 108X70X25 in mm

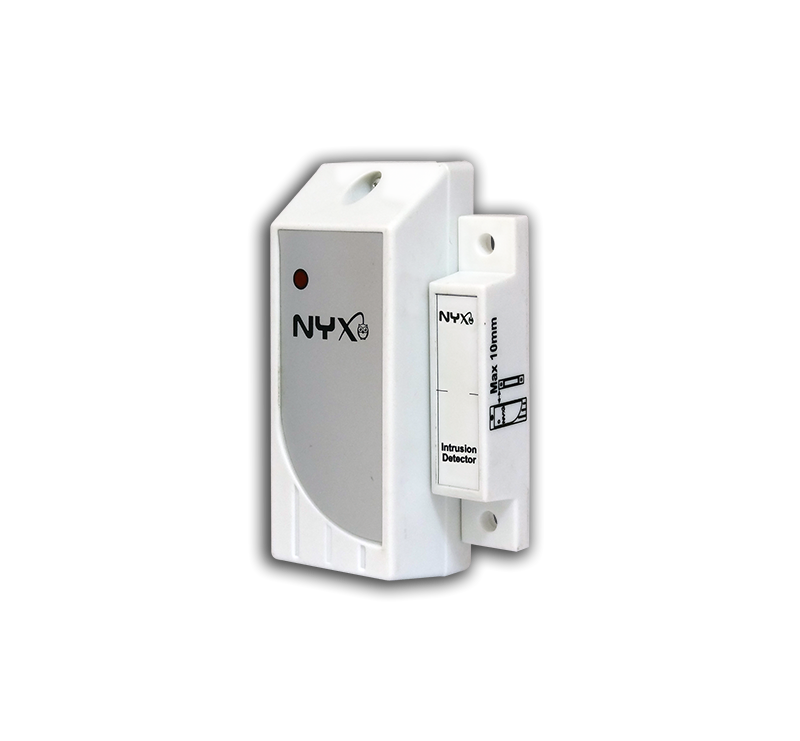

Intrusion Detector
- Works on wireless technology
- Monitors all types of doors and windows
- Reports Open/Closed status of doors and windows and triggers customized alarms
- Works on AAA batteries
- Consumes low power ensuring extended battery life
- Light weight and unobtrusive design
- Easy to maintain
- Input Power: 2xAAA Battery
- Transmitting Power:10MW approximately
- Type of sensor: Bipolar magnetic sensor
- Operating Distance: 15mm (in open-area)
- Working Temperature: 0 to +45 degree Centigrade
- Operating Temperature: 0-50 degree centigrade
- Battery Life: Approximately 2 years
- Connectivity: Radio 866 MHz (to communicate with the Nyx system)
- Dimensions: 37mm*65mm*17mm(L*W*H)

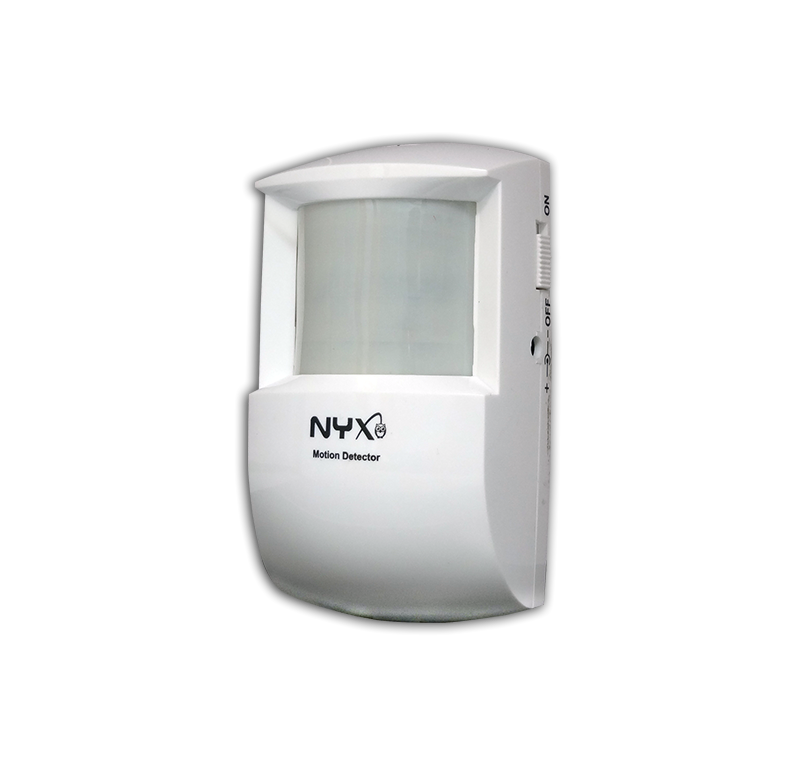

Motion Detector
- Wireless motion sensing module
- Typically installed in hallways, corridors, large rooms for security and lighting purposes
- Offers pet immunity
- Provides programmable sensitivity
- Battery operated device
- Wall/ceiling mountable
- Easy installation with the help of a mounting bracket
- Aesthetically appealing design to add to your home decor
- Input Power: 3VDC (2xAAA Battery)
- Detection Range: 100 deree x 12m
- Walk Test LED: Jumper selectable to enable/disable.
- Mounting Height: 2m Typical
- Operating Temperature: 0-60 degree Centigrade
- Battery Life: Approximately 2 years
- Sensor Range/Arc: 88 degree x 23m at 25 degree Centigrade
- Connectivity: Radio 866 MHz (to communicate with the Nyx system).
- Dimensions: 75mm*55mm*100mm(L*W*H)

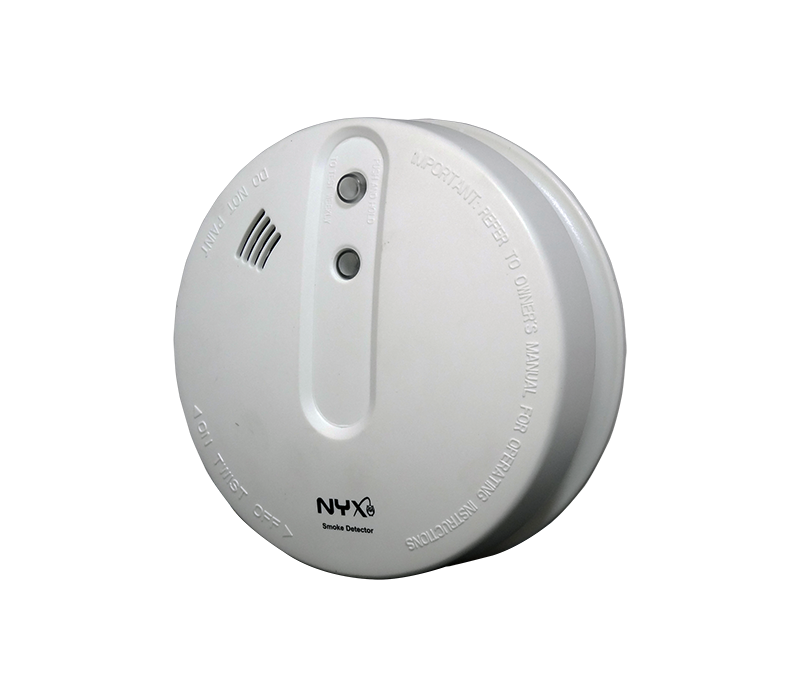

Smoke Detector
- Works on wireless technology
- Triggers an alarm when smoke or fire is detected
- Typically installed at strategic locations in the house such as kitchens and bathrooms to ensure safety
- Battery operated device
- Wall/ceiling mountable
- Mounting bracket makes installation easy
- Dust proof and easy to maintain
- Input Power: DC 9V battery (6F22 type)
- Detection area : 20 square meters
- Operating temperature : 0 to 50 degree Centigrade
- Output: Alarm, Red LED flash and Low battery indication
- Sound level :85dBm approximately
- Battery Life: Approximately 1 year
- Connectivity: Radio 866 MHz (to communicate with the Nyx system)
- Dimensions: Diameter:107mm
- Thickness:35mm

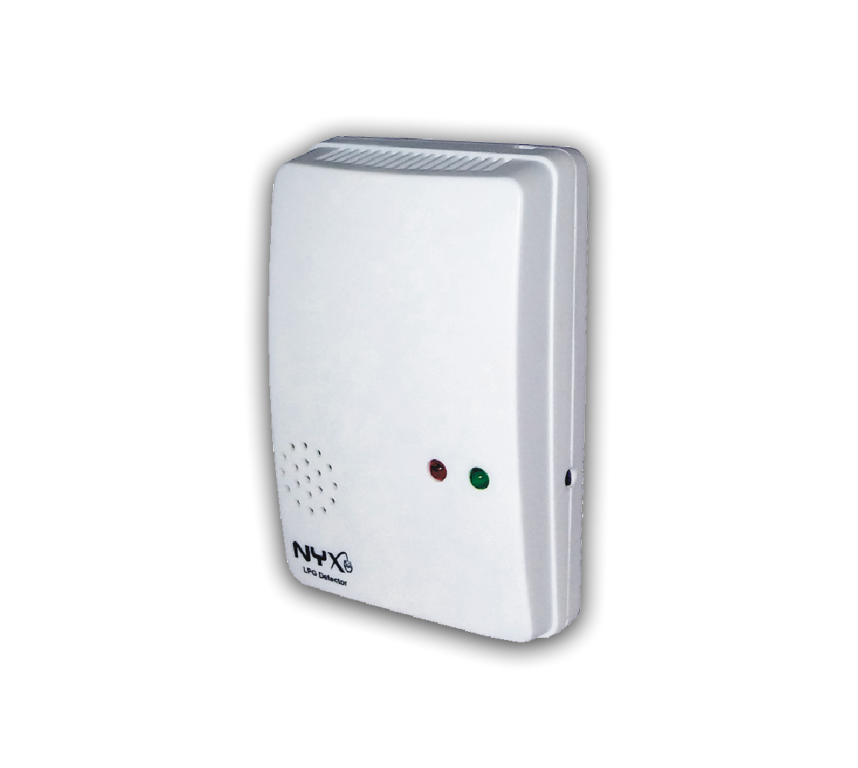

Gas Leak Detector
- Works on wireless technology
- Monitors LPG/PNG gas leaks and triggers alarms
- Detects rise in room temperature
- Typically placed in kitchens and bathrooms to detect leaks from gas cylinders and gas geysers
- Easy to install and can be mounted on kitchen platform
- Easy to maintain
- Sleek and elegantly designed
- Input Power: 230V AC/50Hz
- Power Consumption: 2W Max
- Gas sensor Type: Semi-Conductor
- Detection Level: 10% Lower Explosive Limit
- Working Temperature: 0 to 50 degree centigrade
- Output: Buzzer and PFC relay for energy efficiency
- Detects LPG and PNG gas
- Connectivity: Radio-866 MHz (to communicate with the Nyx system)
- Dimensions: 111mm*40mm*90mm(L*W*H)
